The Pikes Peak Summit Complex is truly a once-in-a-lifetime project. Located 14,115 feet above sea level, the access to the summit via foot, car or rail is what has helped define Pikes Peak as “America’s Mountain.” The mountain annually hosts more than 600,000 visitors.
BranchPattern worked closely with a unique stakeholder group comprised of the U.S. Forest Service, Army Corps of Engineers, City of Colorado Springs, Pikes Peak Cog Railway and Pikes Peak America’s Mountain. Under this arrangement, the design team developed the concepts and plans for a new, ecologically sensitive Visitors Center and Army High Altitude Research Lab (HARL). With goals of Net Zero energy and Net Zero water use, our team helped inform architectural concepts, materials and systems to minimize energy use.
On June 30, 2021, the highly sustainable and energy efficient visitors center opened to the public, allowing new generations of tourists to enjoy the spectacular views and world-famous donuts.
Net Zero Energy

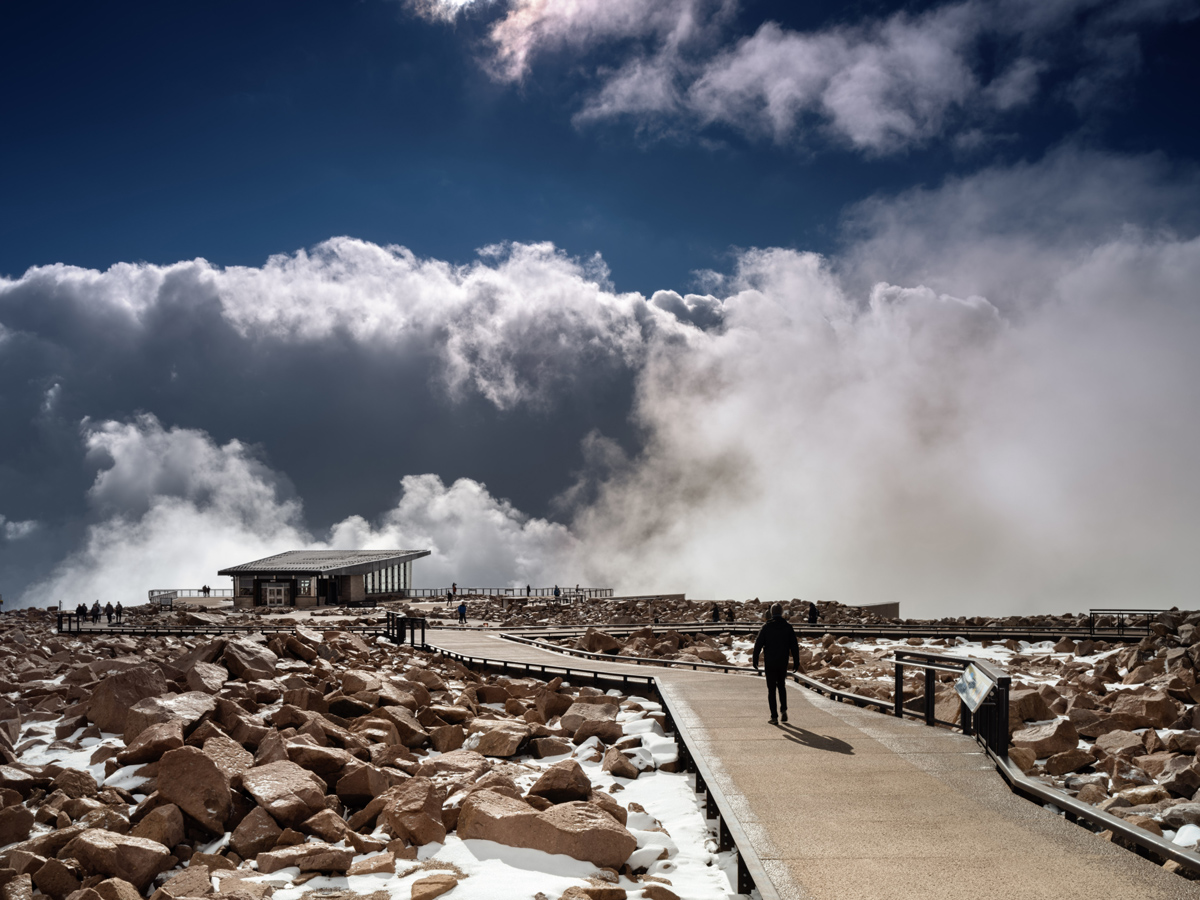

Because of the project location, it’s subjected to harsh weather conditions resembling few other places on Earth. Approximately two-thirds of all hours annually are below freezing, thus the proposed building is heavily insulated and has a very low window-to-wall ratio. Roofs are designed to achieve R-90 and walls are R-40 precast concrete insulated sandwich panels. The north side of the building is sunken into the summit, using the earth to further insulate the building while allowing visitors to walk atop its roof without impeding views from the top of the mountain. Sinking the building also helps to mitigate damage to the structure from high winds, which at this altitude can exceed 150 MPH.

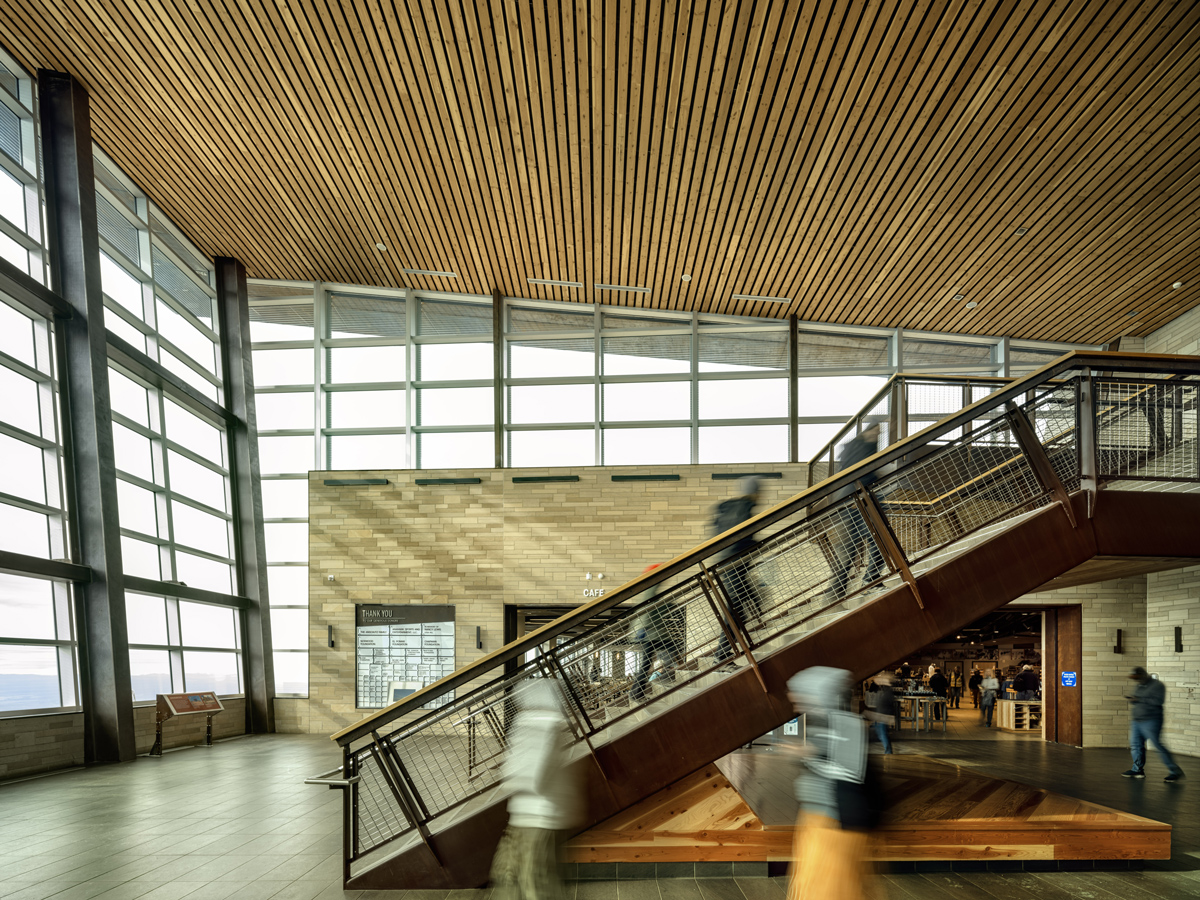

South facing, high-performance windows are installed in the lobby space to allow for passive direct solar heating. Electrochromic glazing is used in other south facing spaces for glare protection. To achieve Net Positive energy, the dramatic energy reduction strategies are coupled with a photovoltaic (PV) array to generate renewable energy. The proposed location is at a lower altitude, at Glen Cove which is approximately 4,000 ft below the summit. At this location, the PV will be better protected from harsh wind conditions which would cause damage.
The building systems provide heating through multi-zoned floor radiant heating and Energy Recovery Ventilation (ERV) for fresh air.
Net Zero Water
The project site has no municipal water collection, meaning fresh water has to be hauled 40 miles round trip. The previous facility required over 300 trips per year. Our approach incorporated and innovative vacuum toilet system, and the first functional gray and black water recycling system in the state of Colorado. This resulted in an 80% reduction in water transportation to the site. Despite Colorado water laws currently preventing the collection of rainwater, the design made accommodations for these laws to change and designed the system such that a future storage and treatment system could easily be incorporated.
